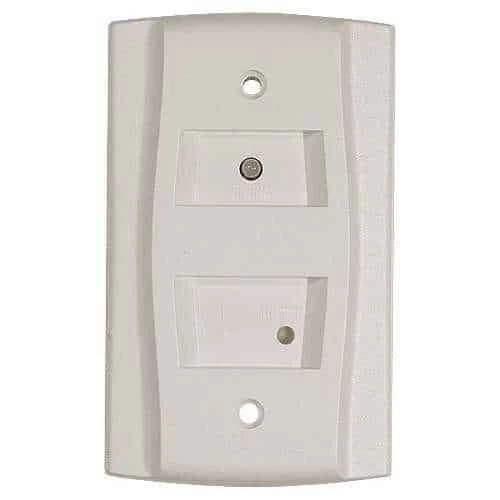

System Sensor RTS151 Remote Test Station With Automatic Fire Detector For Duct Smoke Detectors

System Sensor’s RTS151 is an automatic fire detector accessory designed to test a remotely located detector. The RTS151 mounts to a single gang box (2 1/2″ minimum depth), or directly to the wall or ceiling.

The RTS151 and RTS151KEY remote test stations are automatic fire detector accessories designed to test duct smoke detectors from a convenient location. For 4-wire detectors, the RTS151KEY test station features a multi-colored LED that alternates between steady green and red. For 2-wire detectors, the LED illuminates red for alarm.

RTS151 shall be place and hold the painted side of the magnet to the test location RTS151. RTS151 with the magnet in place some time will elapse (40 sec. maximum) depending on the detector type, before the alarm indicating LED will light. The RTS151 is capable of resetting only certain System Sensor models of detectors.

Main Features

• Power Requirements Alarm LED: 2.8 to 32 VDC, 12 mA max.
• Total Current: 105 mA max.
• Test Switch 10 VA @ 32 VDC
• Reset Switch 10 VA @ 32 VDC
• Alarm Response Time 40 seconds max.
• Temperature Range –10°C to 60°C (14°F to 140°F)
• Relative Humidity 95% non-condensing
• Wire Gauge 14 to 18 AWG
• Dimensions 4.8˝ H x 2.90˝ W x 1.4˝ D
