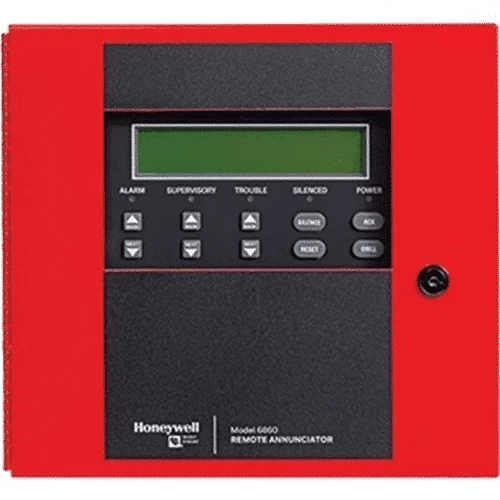

6860 Remote Annunciator
The 6860 remote annunciator can be used to view system status indicators for Honeywell Silent Knight fire alarm control panels (FACPs) from anywhere within the system. Providing a convenient way to view system status signals.
This Annunciator comes in a locked, key controlled cabinet – combining security with easy access. It does not require a code or firefighter’s key to silence or
reset a panel, and also has separate scroll buttons for alarm, supervisory and trouble conditions.
The remote annunciator communicates with the main fire alarm control panel through an RS-485 connection.
The 6860 has a large 160 character, 4 x 40 display and four programmable buttons. These features provide more options for set-up and operation when compared to similar remote annunciators.
This unit can be surface or flush mounted. Use the RA-100TR trim ring can for surface mounts.
COMPATIBILITY
The 6860 is compatible with the following Honeywell Silent Knight FACPs:
- Â 6820: Addressable fire alarm control panel with up to 1,110 addressable points
- Â 6820EVS: Addressable fire alarm control panel with an emergency voice system, up to 1,110 addressable points
- Â 6808: Addressable fire alarm control panel with up to 198 addressable points
- Â 6700: Addressable fire alarm control panel with up to 100 addressable points
Features
- Four programmable buttons can be set to perform, simple, routine or complex tasks, saving time spent at the panel with manual entries
- Four line LCD display with 40 characters per line (160 total characters) provides space for communicating operating messages
- Alarm, Supervisory, trouble, silence and AC power LED indicators
- Accommodates wiring lengths up to 6000 ft. from the control panel for added design and install flexibility
- Lock and key for secure access
- Add user access codes for enhanced security
- Comfortable tactical feel and clear audible confirmation supports accurate programming and easy operation
- On-board piezo sounder audibly indicates alarms, troubles, and supervisory
- Flush or surface mounting
- RS-485 interface to panel
