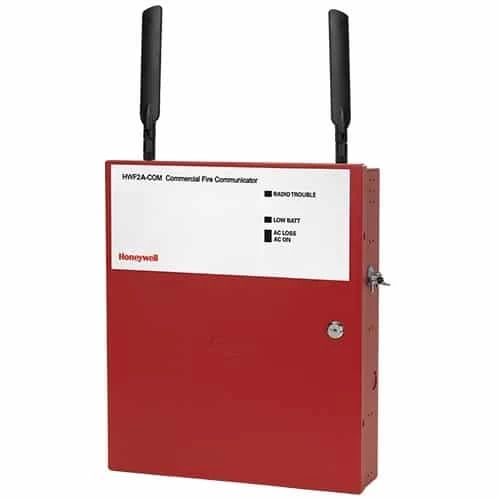

Resideo HWF2A-COM Series LTE IP Single Or Dual Path Commercial Fire Communicator

The HWF2-COM Series LTE / IP fire communicators are single or dual path commercial fire alarm communicators that offer Contact ID reporting with any FACP (fire alarm control panel) with a built-in dialer. Connects directly to the primary or secondary communication ports of a fire panel’s digital alarm communicator transmitter (DACT).

Three selectable reporting paths include: LTE cellular only, IP only, or IP primary with LTE cellular backup. All signals from the HWF2-COM Series are delivered to the AlarmNet® network control center which routes highly encrypted, cybersecured Ethernet data packets via a customer-provided Internet connection or LTE cellular network to the appropriate central station.

The AlarmNet® network control center is fully redundant and monitored 24/7. Installation and programming are easy using the handheld 7720P Programming tool.

• LTE and IP connection tested every day
• Use the 7AH battery (not included) to provide 24 hour backup capability
• Three selectable reporting paths: LTE cellular only, IP only, or IP Primary with LTE cellular backup
• Operates over hardwired Ethernet or LTE
• Diagnostic LEDs indicate signal strength and status
• Operates over the following communication protocols: LTE, HSPA (4G) HSPA (3G)
• Works over any type of customer provided Ethernet 10/100 based network connection (LAN or WAN), DSL model or cable modem
• Data transmits over standard Contact ID protocol but is secured with the industry’s advanced encryption standard (AES 256 bit)
• Supports both dynamic (DHCP) or public and private Static IP addressing
• Reliable connection: IP and cellular connection tested every day
