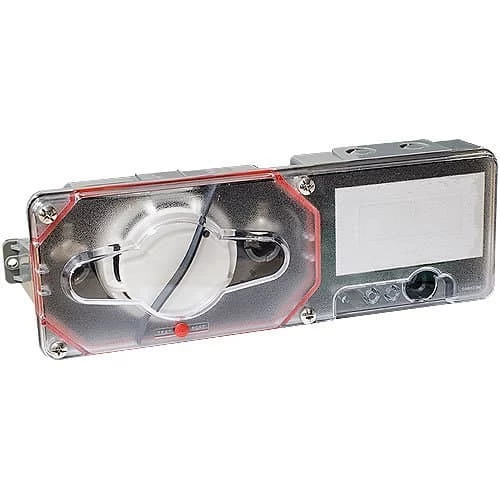

Potter PAD200-DUCTR Analog Addressable Duct Detector With Relay

Original price was: $281.29.Current price is: $98.99.

Detects smoke in building HVAC ducts
Ships complete with housing, detector head, and one Form C Relay
Complies with UL 268 7th edition standards

SKU: ZMLYZ 48251 Categories: Fire, Fire Detection Devices

Prompt service, every time.
Shop with Peace of Mind
Quality products for every lifestyle.
Top Quality Products

The PAD200-DUCTR is designed and built to meet all local requirements, as well as the NFPA regulations regarding duct smoke detectors. Air sampling is accomplished by two tubes which protrude into the duct. An exhaust tube of one standard length (7”) is supplied in the installation kit with the smoke duct unit. Once the duct width has been determined the air intake sampling tubes must be ordered. Sampling tubes are supplied in three standard lengths: 2.5 ft., 5 ft., and 10 ft. and cut to size to fit the duct. Mounting the duct smoke unit is accomplished by the use of a template and 2 sheet metal screws, which are provided. Mounting can be achieved without the removal of the clear cover which is secured by 4 capture screws.

Enhanced sensor technology allows the PAD200 Detector Series to comply with the new UL 268 7th edition standards while bringing customers an even higher standard in smoke detection.

Main Features

Detects smoke in building HVAC ducts
Ships complete with housing, detector head, and one Form C Relay
Complies with UL 268 7th edition standards
Compatible with addressable IPA and AFC/ARC series panels
Listed Air Velocity of 100 to 4,000 ft/minute
Integrated cover tamper switch
Utilizes simple snap in sampling tubes STN series
Compatible with supervised PAD100-DRTS remote test switch, MS-RA, MS-KA/R, MS-KA/P/R remote indicators
Product includes a 5 year warranty
UUKL Listed for Smoke Control
