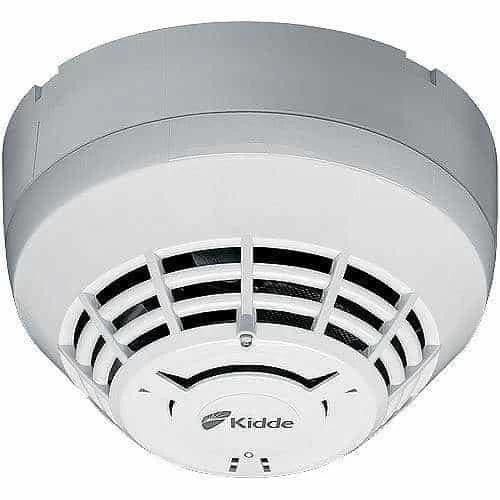

Kidde KIR-OSD Optica Series Intelligent Optical Smoke Detector

The Kidde Intelligent Optica Series KIR-OSD smoke detector brings advanced optical (photoelectric) sensing technology to a practical design that increases efficiency, saves installation time, cuts costs, and extends life safety and property protection capabilities. Continuous self-diagnostics ensure reliability over the long-haul, while environmental compensation helps reduce maintenance costs.

Like all Kidde Intelligent Optica Series detectors, the KIR-OSD is an intelligent device that gathers analog information from multiple optical sensors, converting this data into digital signals. Utilizing dual optical wavelengths combined with multiple detection angles, the KIR-OSD differentiates particles that are not representative of actual smoke. Particle data is input into digital filters which feed a series of ratios removing signal patterns that are typical of nuisance sources, thus reducing unwanted alarms. To make an alarm decision, the detector’s on-board microprocessor measures and analyzes all optical sensor readings and compares this information to preprogrammed settings.

Main Features

• Patented multi-criteria optical smoke sensing technology
• Wide 0.5 to 4.36 %/ft. (1.6 to 13.6 %/m) smoke obscuration
• Uses Existing Wiring
• Integrated nuisance rejection reducing unwanted alarms from general cooking particulates
• Listed to UL 268 7th edition
• Up To 250 detector and module Addresses Per Loop
• Two Levels of Environmental Compensation
• Two Levels of Dirty Detector Warning
• Twenty Pre-Alarm Settings
• Five Sensitivity Settings
• Non-Volatile Memory
• Rotary Addressing, 1 -125
• Automatic Day/Night Sensitivity Adjustment
• Bicolor (Green/Red) Status LED
• Standard, Relay, Fault Isolator, and Audible Mounting Bases
• Sensor Markings Provide Easy Testing Identification
