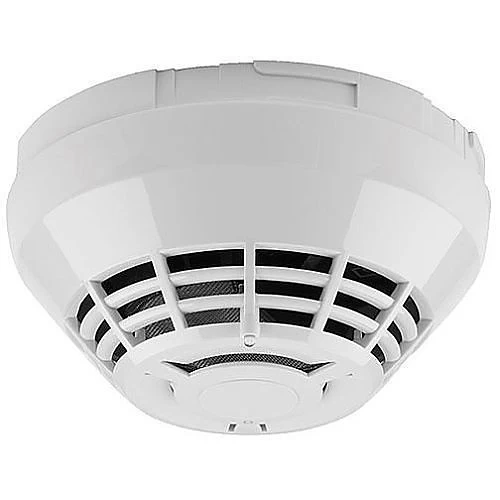

Kidde KC2-H Conventional Low-Profile, Self-Diagnostic, 2-Wire Detector

The Kidde KC2-H Conventional Low-Profile are interchangeable head and base detectors using Optica smoke sensing technology and high accuracy heat sensor that provides outstanding stability and excellent response to a wide range of fires.

Like their Kidde Intelligent series counterparts, KC2 smoke detectors feature a photoelectric chamber using Optica sensing technology providing multi criteria response discriminating real smoke from other nuisance sources. A single tri-color LED located on the housing provides alarm, trouble and standby indications.

The KC2 series consist of 3 models; KC2-OS is a multi criteria photoelectric smoke detector delivering a wide sensitivity range with discrimination to nuisance events and built in environmental compensation.

KC2-OSH is a multi criteria photoelectric smoke and heat detector delivering a wide sensitivity range with discrimination to nuisance events and built in environmental compensation but also includes a heat sensor with a 135 fixed threshold and rate of rise compensation.

KC2-H is a heat only detector comprised of a heat sensor with a 135 fixed threshold and rage of rise compensation.

KC2 series detectors are complimented by a range of standard and relay bases for a variety of electrical box applications.

And, if they become dirty over time, the KC2 Series detectors automatically adjust the alarm threshold through built-in drift compensation.

Main Features

• Self-diagnostic capability continually monitors operation
• Meets NFPA 72 sensitivity test requirements
• Head and terminal base design (base sold separately)
• Automatic drift compensation
• Tri-color status LED, solid red for alarm, flashing yellow for trouble and flashing green for standby
• Low-profile design blends into the ceiling
• Advanced nuisance discrimination from non-fire sources
