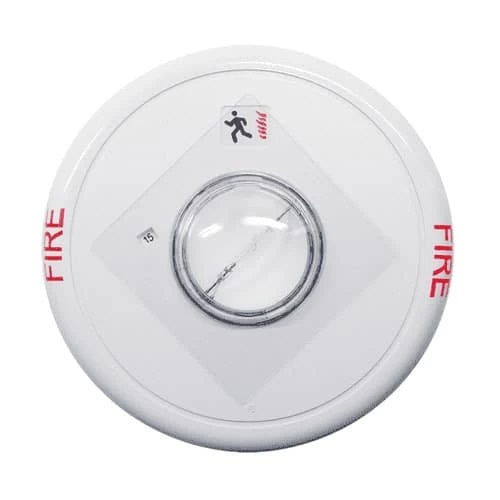

Kidde EGCF-VMH Genesis Strobe, Ceiling Mt., 95-177 CD, Marked In.Fire In., 24VDC, White

EGCF-VMH Genesis life safety ceiling speaker-strobes are small, compact, audible-visible emergency signaling devices. Protruding no more than 1.6″ (41mm) from the ceiling, Genesis speaker- strobes feature textured housings in neutral white or life safety red.

Edwards Genesis strobes do not require bulky specular reflectors and lenses. The patented cavity design conditions light to produce a highly controlled distribution pattern. FullLight strobe technology produces a smooth light distribution pattern. This ensures the entire coverage area receives consistent illumination from the strobe flash.

Genesis Series include models 15 to 95, or 95 to 177 candela output that is selectable with a conveniently located switch. The candela output setting remains clearly visible and locked into place after final installation.

The strobes are designed to flash at the same rate (synchronize) when used with a compatible synchronization source, such as the EG1M-RM synchronization module, E-FSC and E-FSA fire panels, and EBPS series booster supplies.

Main Features

• Xenon light source
• Clear lens
• White or red housing
• Low profile design
• 1/4, 1/2, 1, and 2 watt selections via switch
• Field selectable candela output via switch
• Up to 101dB @ 1m/91dB @ 10ft. output
• Fits all standard 4″ square electrical boxes – no extension ring or trim plate required
• Operating temperature range

Synchronization Sources FACPs: VM and VS Series life safety systems, FX Series fire alarm control panels. Moduels: GSA-CC1S, GSA-MCC1S,
SIGA-CC2A, GSA-MCC2A, EG1M-RM. Power supplies: MIRBPS6A, MIRBPS10A, APS6A, APS10A
