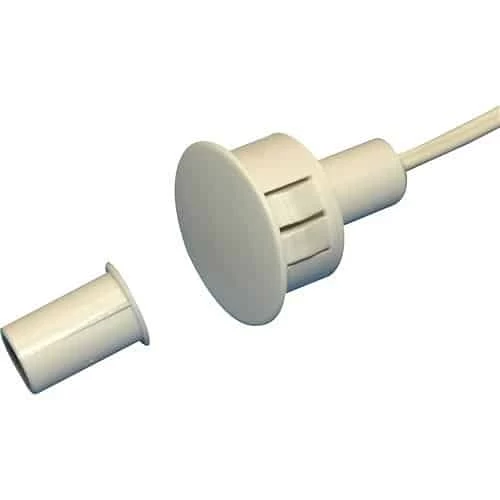

GRI 120T-12 3/4″ Switch 3/8″ Magnet Recessed Switch Set, Standard Gap, Brown 10 Pack

The 120T/4473 requires that a 3/4″ hole be drilled for the switch and 3/8″ hole for the magnet. The 3/4″ switch mounting is desirable since the extra wire and connections can be more easily inserted into the larger hole for concealment. Also, should the need arise for testing or replacement, it would be easy to pull the switch, extend the extra wire and access the original connections.

Installation is further enhanced by using a smaller 3/8″ diameter magnet to avoid the need to center a larger hole in a 1″ to 1 1/2″ thick door or window. This will allow you to offset the magnet should it be required.

The 120T/4473 switch set was developed for and should only be used in openings with wooden or aluminum frames.

Main Features

• Recessed Magnetic Contact
• Press To Fit
• Also Available in Stubby Version
• Available in closed loop, open loop and SPDT
• Wire leads or terminal blocks
• 12” #22AWG Leads or Screw Terminals
• Available with new rare earth Magnets
• Longer Leads, Zip Cord or Jacketed Cable Upon Request
• Hermetically Sealed
• Plated Contacts Resist Sticking or Freezing
• Built-in E.O.L. Resistors and Diodes Upon Request
• Supervisory Loops Upon Request
• Switches and Magnets Available Separately
• Colors: White, Brown, Gray, Black
• Lifetime Warranty
