New

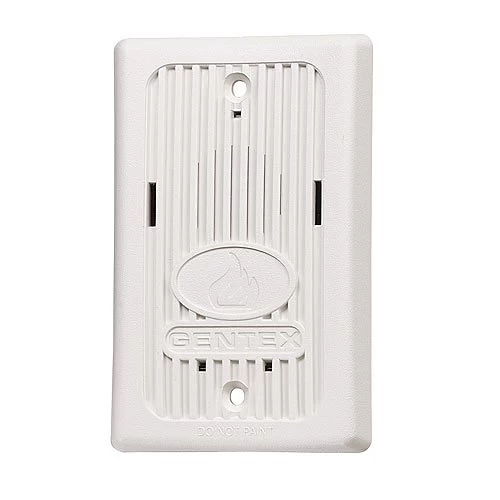

Gentex GX93-W GX93 Series 12VDC/24VDC Mini-Horn, White

Original price was: $28.74.Current price is: $20.12.

Single unit is capable of 12 or 24 VDC determined by the input voltage
Unit dimensions: 4.48″ (11.38 cm) high x 2.84″ (7.21 cm) wide x 0.5″ (1.27 cm) deep
Jumper selectable temporal 3 or continuous tone
Horn frequency is 3100Hz

SKU: ZMLYZ 28130 Categories: Fire, Notification Appliances

Prompt service, every time.
Shop with Peace of Mind
Quality products for every lifestyle.
Top Quality Products

Gentex GX93-W

The GX93 Series mini-horn is a high quality remote signaling appliance that offers dependable remote annunciation. The GX93 is listed for use with both filtered and unfiltered power. This unit is not synchable with the AVS44 control module. It is however synchable from the panel. With the GX93 a jumper is provided to select either the continuous tone or the temporal 3 evacuation tone.

Main Features

Single unit is capable of 12 or 24 VDC determined by the input voltage
Unit dimensions: 4.48″ (11.38 cm) high x 2.84″ (7.21 cm) wide x 0.5″ (1.27 cm) deep
Jumper selectable temporal 3 or continuous tone
Horn frequency is 3100Hz
Terminal blocks (12 AWG to 18 AWG)
Low current consumption
Variety of mounting options for new construction and retrofit applications
Synchronize using the Gentex AVSM Series control module (see Technical Bulletin 015)
ANSI/UL 464 listed for fire protective service
Textured finish high impact plastic faceplate, available in red or off-white
