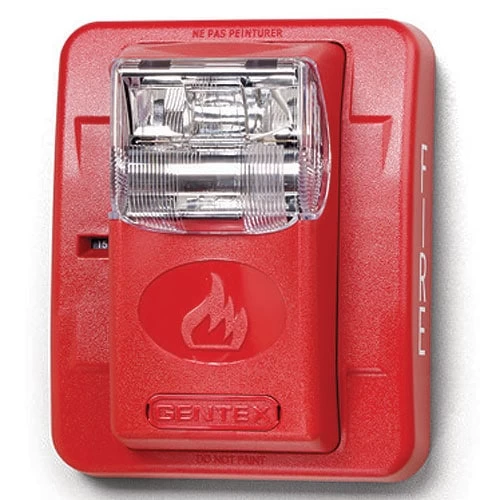

Gentex GES3-24WR Commander3 Series Selectable Candela Evacuation Strobe, 24VDC, Red

Gentex GES3-24WR Commander3 Series Selectable Candela Evacuation Strobe, 24VDC, Red

The Commander3 Series is a low profile evacuation strobe that provides reliable visual alarms and the lowest current available.

The GE3 Series 24VDC strobe offers tamperproof field selectable candela options of 15, 30, 60, 75, and 110 candela.

Commander3 Series is shipped with a standard 4” metal mounting plate which incorporates the popular Super-Slide® feature that allows the installer to easily test for supervision. The product also features a locking mechanism which secures the product to the bracket without any screws showing. The Commander3 also features the patented Checkmate® instant voltage verification feature which allows the installer to check the voltage drop draw and match it to the blueprint.

The GE3 Series appliances are ANSI/UL 464, ANSI/UL 1971, CAN/ULC S525 (24 VDC only) and/or CAN/ULC S526 (24 VDC only), is listed for use with fire protective systems and are warranted for three years from date of purchase.

24vdc Evacuation Strobe Red Features

• Nominal voltage 12 VDC and 24 VDC
• 24 VDC field selectable candelas: 15, 30, 60, 75 & 110
• 12 VDC field selectable candelas: 15, 30, 60 & 75
• Unit Dimensions: 5” (12.7 cm) high x 4.5” (11.43 cm) wide x 2.5” (6.35 cm) deep
• Super-Slide® Bracket, Ease of Supervision Testing
• Checkmate® Instant Voltage Verification
• Prewire entire system, install mounting bracket, then install signal
• Documented lower installation and operating costs
• Input terminals accept 12 to 18 AWG
• Synchronize strobe with Gentex AVSM Control Module
• Silence audible while visual appliance will remain flashing
• Tamperproof re-entrant style grill and locking screw (optional use)
• Surface mount with the GSB (Gentex Surface Mount Box)
• Faceplate available in red or off-white
• Wall mount
