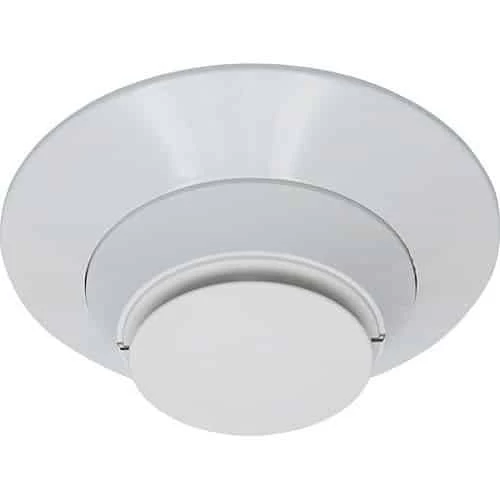

Fire-Lite SD365 Addressable Photoelectric Smoke Detector, LiteSpeed Only, White (Replaces SD355)

The Fire-Lite® Alarms SD365(A), SD365R(A), and SD365HT(A) intelligent plug-in addressable photoelectric smoke detector are designed for both performance and aesthetics, and are direct replacements for the SD355 Series. A new modern, sleek, contemporary design and enhanced optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards.

Exclusively for use with Fire-Lite’s addressable fire alarm control panels, the SD365(A) Series point ID capability allows the setting of each detector’s address with rotary, decimal address switches, providing exact detector location for emergency personnel to quickly locate a fire during its early stages, potentially saving precious rescue time while also reducing property damage. Additionally two LEDs on each sensor light to provide a local, visible sensor indication. The SD365(A) Series also offers 135°F (57°C) fixed temperature thermal sensing on the SD365T(A) and a remote test capable detector on the SD365R(A) for use with DNR(A)/DNRW duct smoke detector housings.

Addressable Photoelectric Smoke Detector Main Features

• Two-wire SLC loop connection
• Unit uses base for wiring
• Compatible with LiteSpeed™ and CLIP protocol systems
• Stable communication technique with noise immunity
• Addressable by device
• Rotary, decimal addressing (Refer to the Fire-Lite panel manuals for device capacity.)
• Sleek, low-profile, stylish design
• Unique single-source design to respond quickly and dependably to a broad range of fires
• Integral communications and built-in device-type identification
• Built-in tamper resistant feature
• Remote test feature from the panel
• Walk test with address display (an address on 121 will blink the detector LED: 12-[pause]-1(LiteSpeed systems only)
• Built-in functional test switch activated by external magnet
• Removable cover and insect-resistant screen for simple field cleaning
• available in white and ivory
• compatible with FACP: MS-9600UDLS
