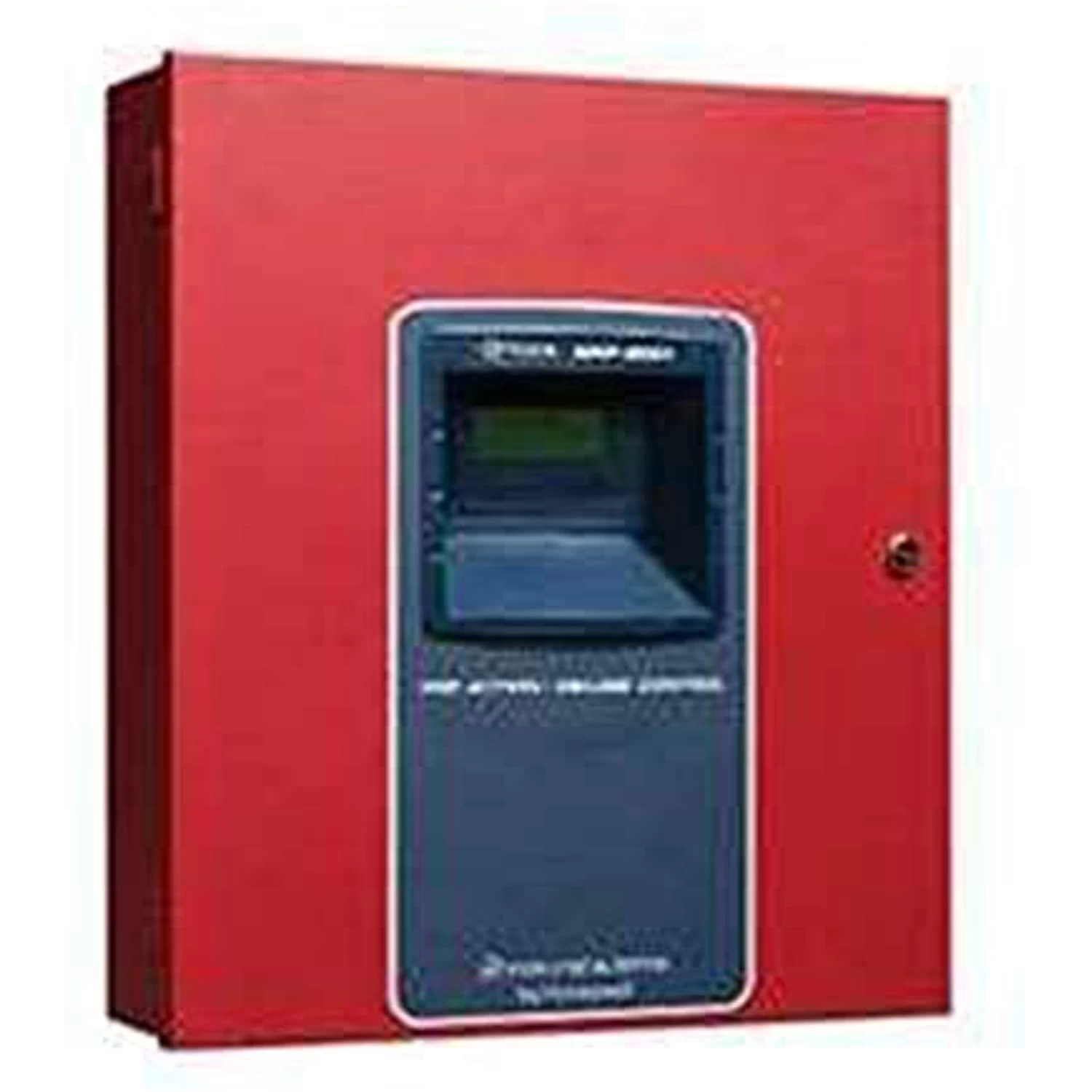

Fire-Lite MRP-2001 Fire Alarm Control Panel, 6-Zone For Single And Dual Hazard Deluge And Preaction, 24V

The MRP-2001 is a six-zone Release Agent Control Panel for single and dual hazard deluge and preauction applications. It provides reliable fire detection, signaling and protection for commercial, industrial and institutional buildings requiring water-based releasing. The MRP-2001 is compatible with System Sensor’s i3 detectors which are conventional smoke detectors that can transmit a maintenance trouble signal to the FACP indicating the need for cleaning and a supervisory ‘freeze’ signal when the ambient temperature falls below the detector rating of approximately 45°F (7.22°C). In addition, the control panel is compatible with conventional input devices such as two-wire smoke detectors, four-wire smoke detectors, pull stations, waterflow devices, tamper switches and other normally-open contact devices. Refer to the FireLite Device Compatibility Document for a complete listing of compatible devices.

Four outputs are programmable as NACs (Notification Appliance Circuits) or releasing circuits. Three programmable Form-C relays (factory programmed for Alarm, Trouble and Supervisory) and 24 VDC special application resettable and non-resettable power outputs are also included on the main circuit board. The MRP-2001 supervises all wiring, AC voltage, battery charger and battery level.

Release Agent Control Panel Features and Benefits

• 6-zone Style B (Class B) or 6-zone Style D (Class A) with optional modules
• 4 Programmable Output Circuits Style Y (Class B) or 4 Programmable Output Circuits Style Z (Class A) with optional modules
• Outputs programmable for Releasing Solenoids
• Dual hazard operation
• Adjustable waterflow discharge timer and two soak timers
• Cross-zone capability
• Pre-programmed and custom application templates
• Built-in NAC synchronization for System Sensor, Wheelock, Gentex, Faraday and Amseco devices
• Built in programmer: Integral 80 character LCD display with backlighting and keypad
• Annunciator bus supports up to 8 devices, including ANN-80 LCD Remote Annunciator, remote serial or parallel printer gateway, and LED graphic annunciator
• 7.0 amps total usable current
