Fire-Lite ISO-6 6-System Sensor Fault Isolator Module
Original price was: $388.44.$98.99Current price is: $98.99.
- Removable 12 to 18 AWG plug-in terminal blocks.
- Individual LED status indicators.
- Six individual, Class B isolator circuits.
- Prompt service, every time.
- Shop with Peace of Mind
- Quality products for every lifestyle.
- Top Quality Products

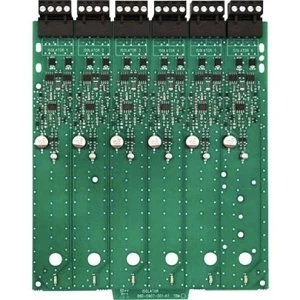

The Fire-Lite ISO-6 6-System Sensor Fault Isolator Module provides six equivalent circuits that will allow a portion of the communications loop to continue operating when a short circuit occurs on that loop. An amber LED indicator will blink in the normal state for each of the six inputs and will latch on during a short circuit condition.
The module will automatically restore the communications loop to normal condition when the short circuit is removed. The ISO-6 Six Isolator Module is an automatic switch that opens when the line voltage drops below four volts. Isolator modules should be spaced between groups of sensors or modules in a loop to protect the rest of the loop. If a short occurs between any two isolators, then both isolators immediately switch to an open circuit state and isolate the devices between them. The remaining units on the loop continue to fully operate.
Main Features
- Removable 12 to 18 AWG plug-in terminal blocks.
- Individual LED status indicators.
- Six individual, Class B isolator circuits.
- Mount up to two modules in BB-2F enclosure (optional).
- Mount up to six modules on a CHS-6 chassis in a BB-6F cabinet.
- Mounting hardware included.
