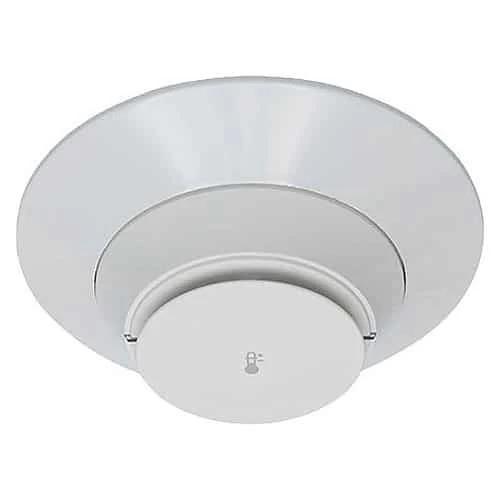

Fire-Lite H365R Addressable Heat Detector, Low-Profile Intelligent Rate-of-Rise Thermal Sensor And LiteSpeed Only, White

Fire-Lite H365R Addressable Heat Detector, Low-Profile Intelligent Rate-of-Rise Thermal Sensor, White, LiteSpeed Only

The Fire•Lite® Alarms H365(A), H365R(A), and H365HT(A) addressable plug-in thermal detectors are designed for both performance and aesthetics. These detectors are a direct replacement for the H355 Series. A new modern, sleek, contemporary design and advanced thermal technologies make the H365(A) Series ideal for both system operation and building design.

Exclusively for use with Fire•Lite’s addressable fire alarm control panels. The H365(A) Series point ID capability allows each detector’s address to be set with rotary, decimal address switches. This provides exact detector locations for emergency personnel to quickly locate a fire during its early stages. This feature can potentially save precious rescue time while also reducing property damage. Two LEDs on each sensor light to provide a local, visible sensor indication.

The H365(A) Series includes fixed temperature, rate-of-rise and high heat fixed temperature detectors.  These Models provide effective, intelligent property protection for a variety of applications. Detectors are available for both LiteSpeed™ and CLIP applications as designated.

Installation

H365 Series plug-in intelligent thermal detectors use a detachable base to simplify installation, service and maintenance. Installation instructions are shipped with each detector.
Mount detector base (all base types) on an electrical backbox which is at least 1.5″ (3.81 cm) deep. For a chart of compatible junction boxes, see DF-60059.

NOTE: Because of the inherent supervision provided by the SLC loop, end-of-line resistors are not required. Wiring “T-taps” or branches are permitted for Style 4 (Class “B”) wiring only.

When using relay or sounder bases, consult the I300(A) installation sheet I56-3626 for device limitations between isolator modules and iso
