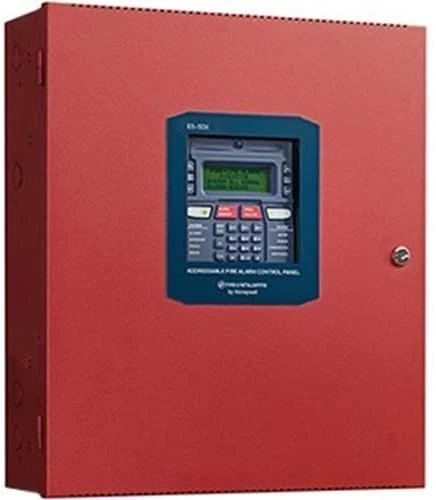

Fire-Lite ES-50X Addressable Fire Alarm Control Panel, 50-Point

The ES-50X is a 50 point addressable fire alarm control panel (FACP) from Fire•Lite Alarms and is a replacement for the MS-9050UD/LS. This control panel has a communicator already installed. Its communicator can handle up to 50 addressable devices in any combination of detectors or modules. Full of great features, the ES-50X programs just like Fire•Lite’s other
addressable panels. This panel can also handle applications once only covered by conventional panels.

The pre-installed communicator is dual technology.  Named the IPOTS-COM it uses PTOS and IP technology. The POTS sends system standing (alarms, troubles, AC loss, etc.) to a Central Station via the public switched telephone network. The IP communicator’s internet monitoring capability sends alarm signals over the Internet. Sending the signals over the internet is a great cost saving feature.  Using the CELL-MOD or CELL-CAB-FL enables optional cellular reporting.

With FS-Tools Upload/Download utility this panel supports local and remote programming. Upload or download programming databases through a USB port (and USB cable) on the panel or through an ethernet connection using the dual technology communicator.  The entire program, history file, walk-test data, current status and system voltages can be uploaded or downloaded  with a USB flash drive.

A Quick install chassis and metal cabinet housing hold the power supply and all electronics. Available accessories include local and remote upload/download software, remote annunciators, and reverse polarity/city box transmitter (4XTMF).

50 Point Addressable FACP  Features

• Listed to UL Standard 864, 10th edition
•  Pre-installed IPOTS-COM Ethernet IP and POTS (Plain Old Telephone Service) Central Station Communicator
•  Optional CELL-MOD or CELL-CAB-FL GSM Central Station Communicator over AlarmNet®
•  Compatible with SWIFT® wireless devices
•  Auto-programming (learn mode) reduces installation time. Reports two devices set to the same address
•  Two independently programmable, built-in Style Z (Class A) or Style Y (Class B) NAC circuits
•  Selectable strobe synchronization for System Sensor, Wheelock, and Gentex devices
•  Notification Appliance Circuit End of Line resistor matching
•  Four programmable function keys for ease of maintenance
•  Two programmable relays and one fixed trouble relay
•  Built-in Programmer
•  Integral 80-character LCD display with backlighting
•  Real-time clock/calendar with automatic daylight savings control
•  History file with 1,000 event capacity
•  Addressable sounder base
•  Multi-criteria detector (smoke, heat, CO) with programmable response
•  Control module delay timer
•  Automatic detector sensitivity testing (NFPA 72 compliant)
•  Automatic device type-code verification
•  Point trouble identification
•  Waterflow selection per module point
•  Alarm verification selection per detector point
