Fire-Lite ES-200X Addressable Fire Alarm Control Panel, 198-Point (Replaces MS9200UDLS)

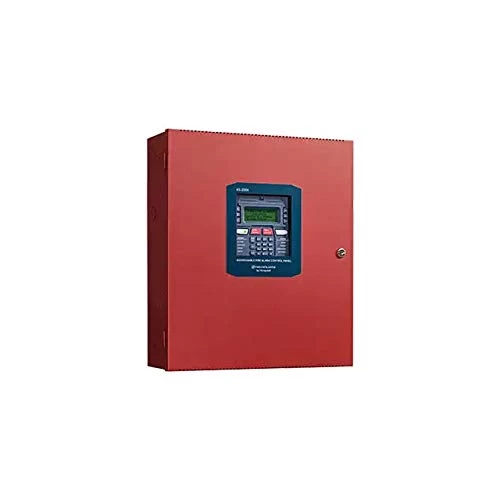

Fire-Lite Alarms by Honeywell ES-200X 198-point addressable fire alarm control panel

The ES-200X is the latest intelligent addressable Fire Alarm Control Panel (FACP) from FireLite Alarms and is a direct replacement for the MS-9200UDLS. The ES-200X comes with a pre-installed communicator and supports up to 198 addressable devices (99 detectors and 99 modules). With an extensive list of powerful features, the ES-200X programs just like FireLite’s other addressable products, yet fits into applications previously served only by conventional panels.

The pre-installed IPOTS-COM is a dual technology (POTS and IP) communicator. The POTS transmits system status (alarms, troubles, AC loss, etc.) to a Central Station via the public switched telephone network. The IP communicator’s internet monitoring capability sends alarm signals over the Internet saving the monthly cost of two dedicated business telephone lines. Although not required, the secondary telephone line may be retained providing backup communication over the public switched telephone line. Optional cellular reporting is available using the CELL-MOD or CELL-CAB-FL.

Remote and local programming of the control panel is possible using the FS-Tools Upload/Download utility. Programming databases can be uploaded/downloaded via the panel’s USB port (and USB cable) or via an ethernet connection using the IPOTS-COM communicator. The USB port also allows for the download or upload of the entire program, history file, walk-test data, current status and system voltages by means of a USB flash drive.

The power supply and all electronics are contained on a circuit board supported on a new quick install chassis and housed in a metal cabinet. Available accessories include local and remote upload/download software, remote annunciators, and reverse polarity/city box transmitter (4XTMF).

Features

• Listed to UL Standard 864, 10th edition
• Pre-installed IPOTS-COM Ethernet IP and POTS (Plain Old Telephone Service) Central Station Communicator over AlarmNet
• Optional CELL-MOD or CELL-CAB-FL GSM Central Station Communicator over AlarmNet®
• Automated activation of the ECC-50/100 Emergency Command Center
• ECC-FFT Firefighter Telephone option
• Compatible with SWIFT® wireless devices
• Auto-programming (learn mode) reduces installation time. Reports two devices set to the same address
• Four built-in, independently programmable Style Z (Class A) or Style Y (Class B) NAC circuits
• Selectable strobe synchronization for System Sensor, Wheelock, and Gentex devices
• Notification Appliance Circuit End of Line resistor matching
• Four programmable function keys for ease of maintenance
• Two programmable relays and one fixed trouble relay
• Built-in Programmer
• Integral 80-character LCD display with backlighting
• Real-time clock/calendar with automatic daylight savings control
• History file with 1,000 event capacity
• Addressable sounder base compatibility
• Multi-criteria detector (smoke, heat, CO) with programmable response
• Control module delay timer
• Automatic detector sensitivity testing (NFPA 72 compliant)
• Automatic device type-code verification
• Point trouble identification
• Waterflow selection per module point
• Alarm verification selection per detector point
• Maintenance alert warns when smoke detector dust accumulation is excessive
• One-person audible or silent walk test with walk-test log and printout
• System alarm verification selection per detector point
• PAS (Positive Alarm Sequence) and Pre-signal per point (NFPA 72 compliant)
• Up to 16 ANN-BUS annunciators- 8 per each ANN-Bus
