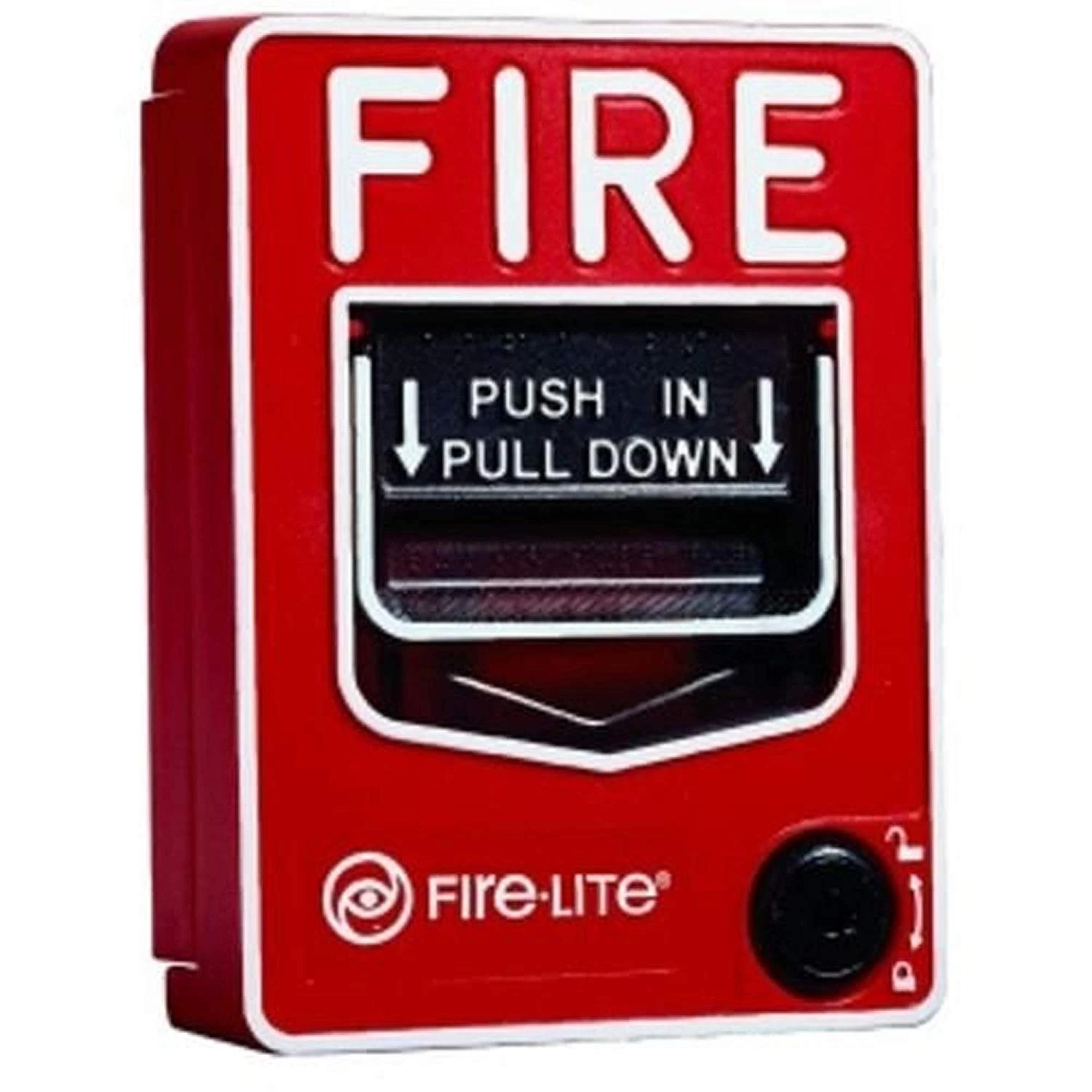

Fire-Lite BG-12LX Dual Action Addressable Pull Station With Key Locking Feature

The Fire·Lite BG-12LX is a state-of-the-art, dual-action (i.e., requires two motions to activate the station) pull station that includes an addressable interface (mounted inside) for Fire·Lite’s addressable fire alarm control panels (FACPs) Because the BG-12LX is addressable, the control panel can display the exact location of the activated manual station. This leads fire personnel quickly to the location of the alarm.

Main Features

• Maintenance personnel can open station for inspection and address setting without causing an alarm condition.
• Built-in bicolor LED, which is visible through the handle of the station, flashes in normal operation and latches steady red when in alarm.
• Handle latches in down position and the word “ACTIVATED” appears to clearly indicate the station has been operated.
• Captive screw terminals wire-ready for easy connection to SLC loop (accepts up to 12 AWG/3.25 mm² wire).
• surface mount (with SB-10 or SB-I/O) or. Semi-flush mount to a standard single gang, double-gang, or 4″ (10.16 cm) square electrical box.
• Smooth dual-action design.
• Meets ADAAG controls and operating mechanisms guidelines (Section 4.1.3[13]); meets ADA requirement for 5 lb. maximum activation force.
• Highly visible.
• Attractive shape and textured finish.
• Key reset.
• Includes Braille text on station handle.
• Optional trim ring (BG12TR).
• Meets UL 38, Standard for Manually Actuated Signaling Boxes.
