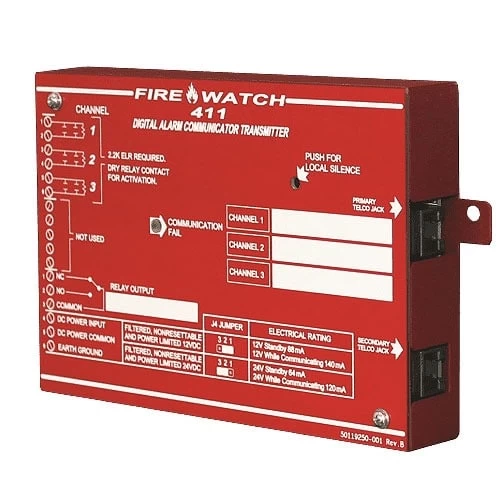

Fire-Lite 411 Fire-Watch Slave Digital Alarm Communicator, Monitoring Channels

The Fire Watch 411 Series DACTs are compact, multifaceted, slave Digital Alarm Communicator Transmitters designed for a variety of fire, security, and non-fire applications. The series features the 411 and 411UD, which provide three and four monitoring channels (inputs) respectively. These slave DACTs are a solution for applications that require an existing (or new) fire alarm control panel (FACP) to transmit system status to an off-site monitoring facility for Central or Remote Station compliance.

Due to extremely flexible programming options, the 411 Series slave DACTs are also ideal for monitoring non-fire and security control panels. With fifteen selectable transmission formats (including ADEMCO Contact ID) compatibility with virtually all Digital Alarm Communicator Receivers (DACR) is ensured. Programming can be accomplished on-site with a hand-held programmer (PRO-411), or remotely (411UD only) using the PK-411UD programming utility.

This Windows®based remote upload/download software package permits system interrogation and revision from a remote site.

• Trigger inputs require a contact closure for activation
• Inputs may be individually programmed to monitor the host control panel
• Includes 15 reporting formats, including the popular ADEMCO Contact ID format
• 12 or 24VDC operation, jumper-selectable
• Capable of transmitting the following DACT information, in addition to vital system status of the host control panel
• Long-distance Carrier Access Code (CAC) compliant, accepting up to 20-digit Central Station telephone numbers
• Fully programmable transmittal codes for fire, security, process monitoring, and others
• Field-programmable with PRO-411 hand-held programmer
• Three (411) or four (411UD) monitoring channels (inputs)
