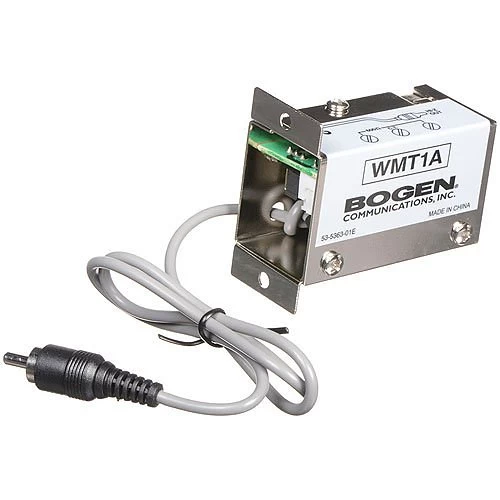

Bogen WMT1A Line Matching Transformer

The Bogen Model WMT1A transformer is designed especially for impedance-matching inputs from, or outputs to, a 600-ohm line. The WMT1A has a Hi-Z, 10kohm primary impedance and a Lo-Z, 600-ohm secondary impedance balanced with a center tap. As an input-matching transformer, it may be used to connect telephone systems to most Bogen public address amplifiers for telephone paging. It also functions as an output-matching transformer in feeding program material over a 600-ohm telephone line (typically for “music-on-hold” applications). The WMT1A is compatible with any amplifier having a 25V output terminal.

Main Features

• Hi-Z, 10k-Ohms primary impedance
• Lo-Z, 600-Ohms secondary impedance, balanced with center tap
• Matches high-to-low impedance or low-to-high impedance
