Altronix Proprietary Power Supply MAXIMAL33

Original price was: $319.00.Current price is: $95.99.

AC input and DC output LED indicators.
Filtered and electronically regulated outputs (built-in power supply).
AC Supervision & Battery Monitoring

SKU: ZMLYZ 3636 Categories: Power Supply, Power Supply (Access)

Prompt service, every time.
Shop with Peace of Mind
Quality products for every lifestyle.
Top Quality Products

MAXIMAL33

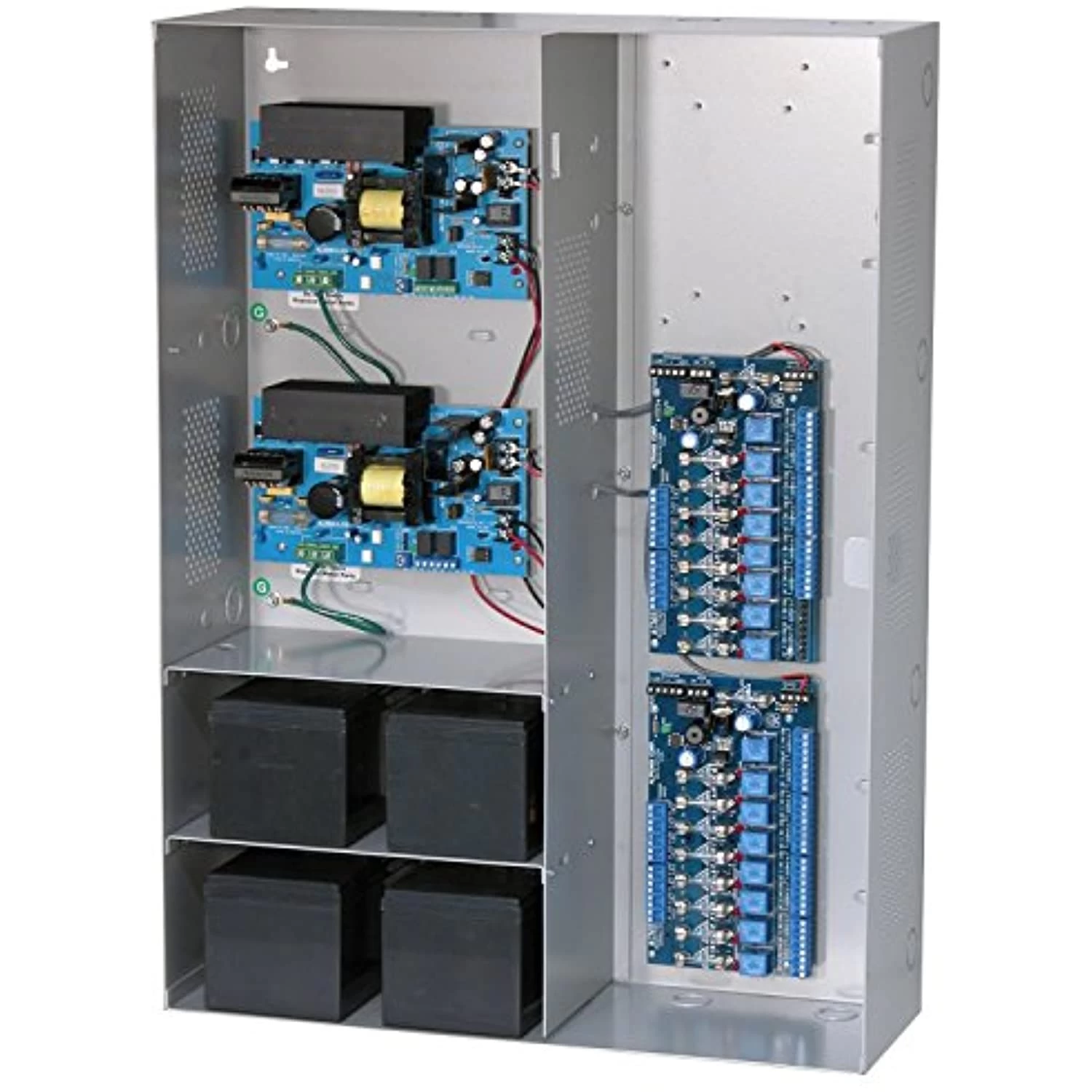

Maximal Access Power/Controllers distribute and switch power to access control systems and accessories. They convert a 115VAC, 60Hz input into sixteen (16) independently controlled 12VDC or 24VDC fuse protected outputs. These Fail-Safe/ Fail-Secure power outputs may be converted to dry form “C” contacts. The outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc.

Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.

Main Features

Sixteen (16) independently controlled outputs.
Output options: a) Sixteen (16) Fail-Safe and/or Fail-Secure power outputs. b) Sixteen (16) form “C” 5A rated relay outputs. c) Any combination of the above.
Sixteen (16) auxiliary power outputs (unswitched).
Output fuses are rated @ 3.5A.
Filtered and electronically regulated outputs.
Supervision: AC Fail/ Battery Fail and Battery Presence.
Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs.
Alarm output relay indicates that FACP input is triggered.
Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input b) Polarity reversal input from FACP signaling circuit.
Built-in charger for sealed lead acid or gel type batteries.
