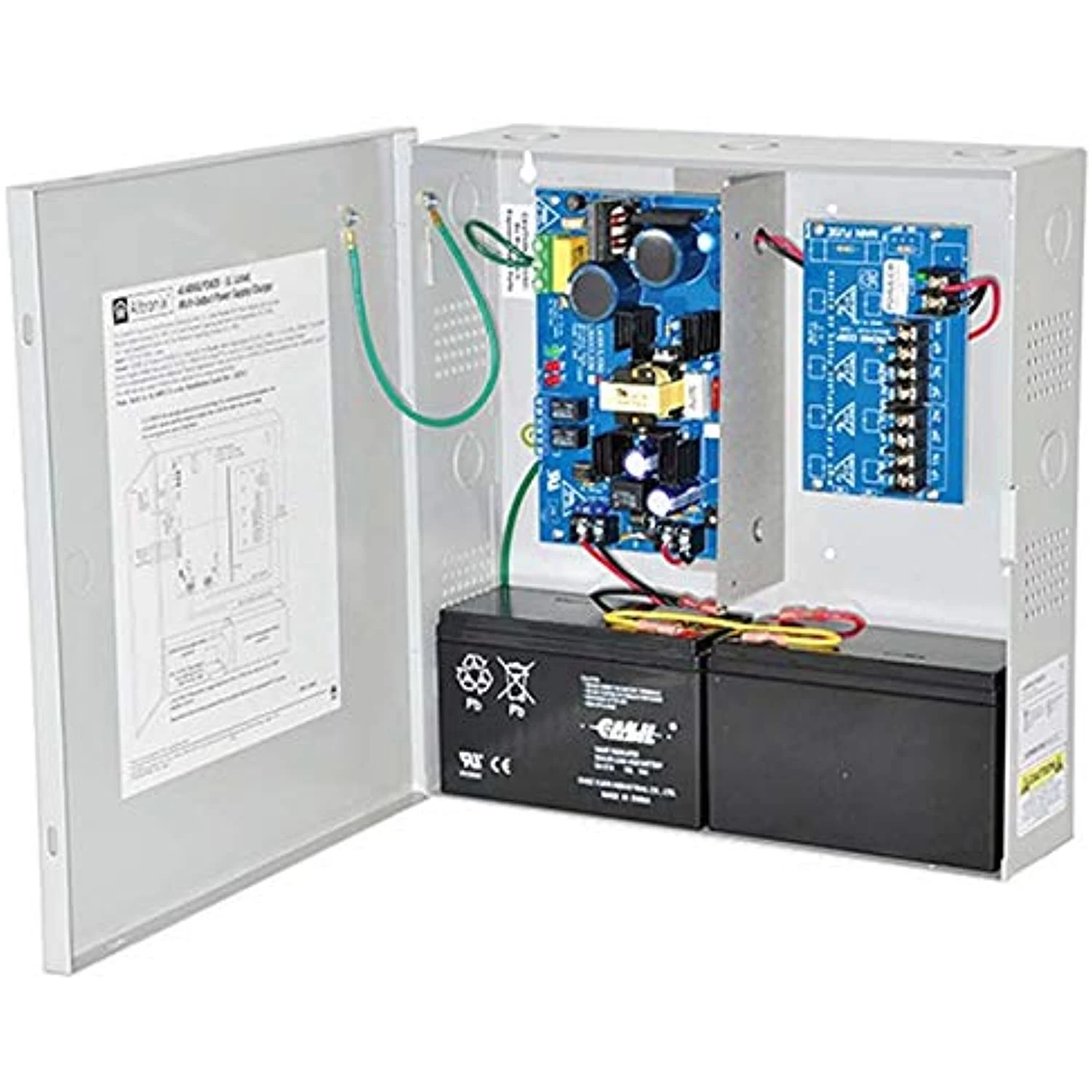

Altronix Proprietary Power Supply AL400ULPD4CB

AL400ULPD8CB is a multi-output power supply/charger that converts a 115VAC/60Hz input into eight (8) Class 2 Rated PTC protected 12VDC or 24VDC power-limited outputs.

• • Input 115VAC, 60Hz, 3.5A.
  • Input fuse rated @ 3.5A/250V.

• Output

  • 12VDC or 24VDC selectable output.
  • 12VDC @ 4A or 24VDC @ 3A supply current.
  • Eight (8) Class 2 Rated PTC protected powerlimited outputs (auto-resettable).
  • Outputs are rated @ 2.5A.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
