New

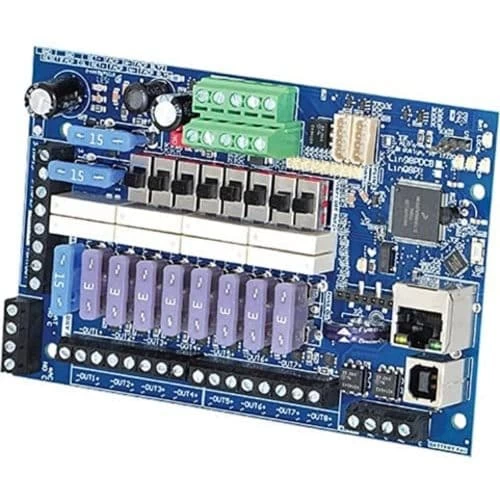

Altronix LINQ8PDCB Networkable Power Distribution Module With Diagnostic Reporting, Eight PTC Outputs

Original price was: $197.81.Current price is: $96.99.

Input Power
- Input1/Input2: 12VAC-28VAC @ 12.5A each or 12VDC/28VDC @ 12.5A each.
- Note: Do not connect AC and DC simultaneously to INP1 and INP2.

SKU: ZMLYZ 22494 Categories: Power Supply, Power Supply (Access)

Prompt service, every time.
Shop with Peace of Mind
Quality products for every lifestyle.
Top Quality Products

Altronix LINQ8PDCB networkable power distribution module facilitates monitoring, reporting and control of one (1) or two (2) low voltage AC or supervised DC power supply/chargers over the network. It reports diagnostics via Email notifications greatly reducing system downtime and eliminating unnecessary service calls. LINQ8PDCB retrofits with most currently installed multi-output power supply/chargers.

Networkable Power Distribution Module Features

Input Power
- Input1/Input2: 12VAC-28VAC @ 12.5A each or 12VDC/28VDC @ 12.5A each.
- Note: Do not connect AC and DC simultaneously to INP1 and INP2.
Outputs
- Eight (8) PTC protected outputs rated 2.5A.
- Power output(s) can be locally or remotely controlled.
- Surge Suppression.
Status Monitoring
- Power Supply(ies) output voltage and load.
- Voltage and load of each output.
- FACP trigger and reset status.
- Unit temperature (Celsius).
- Power Supply AC and Battery status.
- Battery health.
Programming Features
- Power Supply(ies) voltage and load limits (High/Low).
- FACP trigger type (wet or dry-N.O./N.C.).
- Input Function (FACP reset/tamper).
- Output Reset Trigger (N.O./N.C.).
