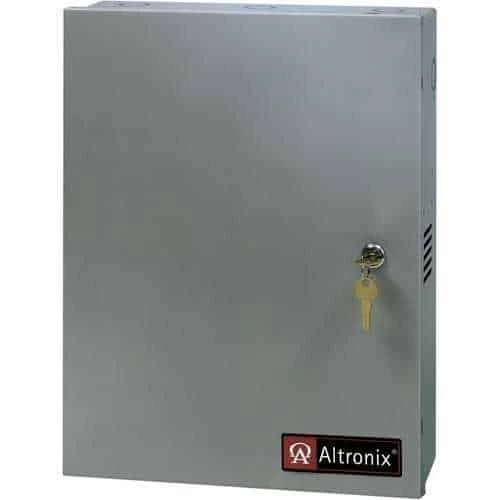

Altronix AL600ULXX Power Supply/Charger

Altronix AL600ULXX Power Supply/Charger, Single Class 2-Output, 12/24VDC at 6A, BC400 Enclosure

Altronix AL600ULX series power supply/chargers convert a 115VAC, 60Hz input into a single fused, four (4), eight (8) or sixteen (16) fuse or PTC protected outputs. Outputs are selectable for 12VDC or 24VDC with a total of 6A max.

AL600ULXX is a power supply/charger which converts a 115VAC/60Hz input into a single 12VDC or 24VDC non power-limited output.

Main Features

• Input 115VAC, 60Hz, 3.5A.
• 12VDC or 24VDC selectable output.
• 6A continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• AC fail supervision (form “C” contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form “C” contacts).
• Battery presence supervision (form “C” contacts).
• AC input and DC output LED indicators.
• System AC input VA requirement: 402.5VA.
