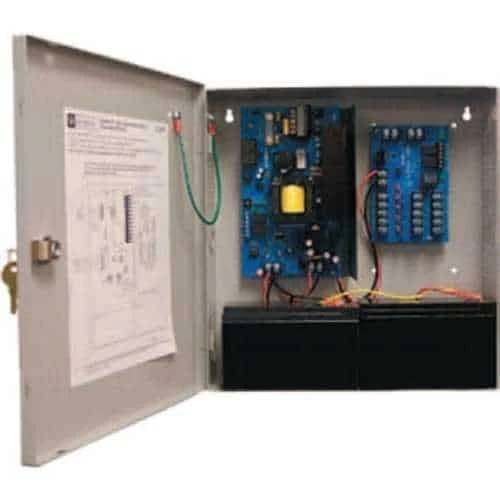

Altronix AL600ULM Access Power Distribution Module

Original price was: $337.67.Current price is: $99.99.

5 PTC Class 2 Outputs
Short circuit and thermal overload protection.
Filtered and electronically regulated output.

SKU: ZMLYZ 37442 Categories: Power Supply, Power Supply (Access)

Prompt service, every time.
Shop with Peace of Mind
Quality products for every lifestyle.
Top Quality Products

Altronix M series access control power supply/chargers are specifically designed for use with access control systems and accessories. These units convert a 115VAC, 60Hz input into five (5) individually protected 12VDC or 24VDC outputs (see specifications). Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open [NO] or normally closed [NC] supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form “C” dry output relay enables HVAC Shutdown, Elevator Recall or may be used to trigger auxiliary devices.

Main Features

Fire Alarm Panel or Access Control System trigger inputs. [NO] or [NC] supervised trigger input and polarity reversal trigger input (4mA draw from FACP).
Five (5) individual power-limited Class 2 outputs (auto-resettable).
Filtered and electronically regulated outputs.
Thermal and short circuit protection with auto reset.
Overload protection.
Output relay energizes when unit is triggered (form “C” contact rated 1A @ 28VDC).
Supervision: – AC Fail – Battery Fail and Battery Presence
Built-in charger for sealed lead acid or gel type batteries
Instantaneous transfer to stand-by batteries
Power and input trigger LEDs.
