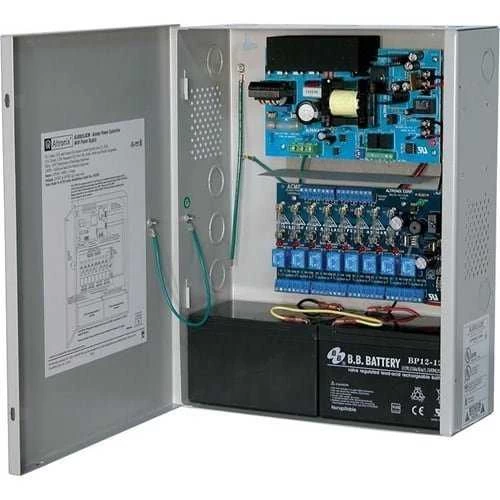

Altronix AL600ULACMCB Access Power Controller

Original price was: $384.09.Current price is: $99.99.

8 Class 2 Rated PTC protected power limited auto-resettable outputs.
Short circuit and thermal overload protection.
AC Supervision & Battery Monitoring

SKU: ZMLYZ 37430 Categories: Access Control, Security

Prompt service, every time.
Shop with Peace of Mind
Quality products for every lifestyle.
Top Quality Products

Altronix ACMCB series distribute and switch power to access control systems and accessories. They convert a 115VAC, 60Hz input into eight (8)independently controlled 12VDC or 24VDC Class 2 Rated power-limited PTC protected outputs. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc.

Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

Main Features

Eight (8) independently controlled Fail-Safe and/or
Fail-Secure power outputs: Class 2 Rated power-limited PTC Protected Outputs (auto-resettable).
Eight (8) auxiliary power outputs (unswitched).
Output PTCs are rated @ 2.5A.
Filtered and electronically regulated outputs.
Supervision: AC Fail/ Battery Fail and Battery Presence.
Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
Alarm output relay indicates that FACP input is triggered.
Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input b) Polarity reversal input from FACP signaling circuit.
Built-in charger for sealed lead acid or gel type batteries.
