Altronix AL175ULX Access Control Power Supply/Charger

Original price was: $189.74.Current price is: $98.99.

2 PTC Class 2 Outputs
AC fail supervision (form “C” contacts) & Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
AC input and DC output LED indicators.

SKU: ZMLYZ 37438 Categories: Power Supply, Power Supply (Access)

Prompt service, every time.
Shop with Peace of Mind
Quality products for every lifestyle.
Top Quality Products

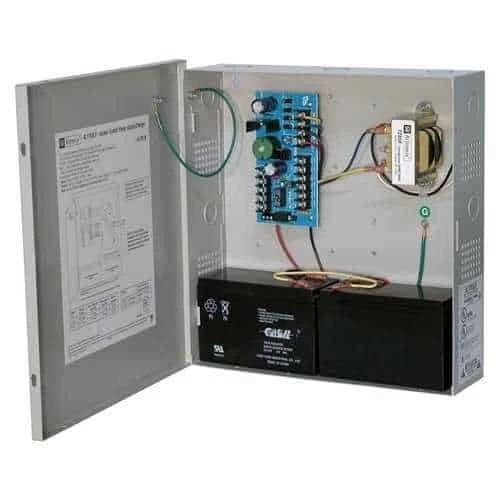

Altronix AL175ULX Switching Power Supply/Charger converts a 115VAC 60Hz input into two (2) individually PTC protected auto-resettable 12VDC or 24VDC outputs.

Main Features

Voltage 115VAC, 60Hz, 0.6A.
Trigger Access control trigger input.
Two (2) Class 2 Rated power-limited outputs: Fail-Safe/Fail-Secure lock output (switched), Auxiliary power output (unswitched).
Voltage 12VDC or 24VDC selectable.
Current 1.75A continuous max.
Other Short circuit and thermal overload protection.
Type Sealed lead acid or gel type.
Failover Upon AC loss, instantaneous.
Supervised Latching or non-latching.
AC Failure Form “C” contacts.
