Altronix ACM8 Access Power Controller Board

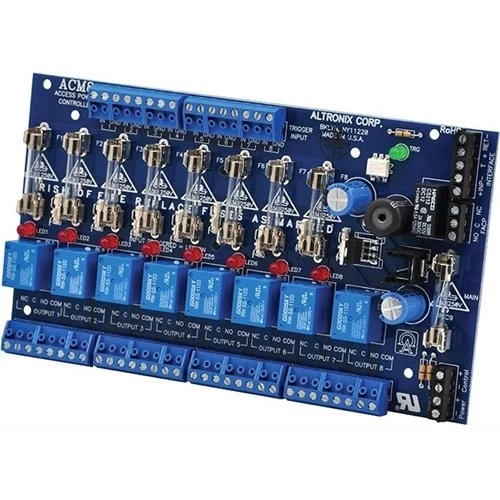

Altronix ACM8 converts one (1) 12 to 24 volt AC or DC input into eight (8) independently controlled fuse protected outputs. These power outputs can be converted to dry form “C” contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. ACM8 will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes.

This unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

Main Features

Input

• 12 to 24 volt AC or DC operation (setting not required), (0.6A @ 12volt, 0.3A @ 24 volt current consumption with all relays energized).
• Main fuse is rated at 10A.
• Power supply input options:

a) One (1) common power input (board and lock power).

b) Two (2) isolated power inputs (one (1) for board power and one (1) for lock/accessory power).

• Eight (8) Access Control System trigger inputs:

a) Eight (8) normally open (NO) inputs.

b) Eight (8) open collector sink inputs.

c) Any combination of the above.

Output

• Eight (8) independently controlled 2.5A outputs:

a) Eight (8) Fail-Safe and/or Fail-Secure power outputs.

b) Eight (8) dry form “C” 5A rated relay outputs

c) Any combination of the above

• Eight (8) auxiliary power outputs (unswitched).
